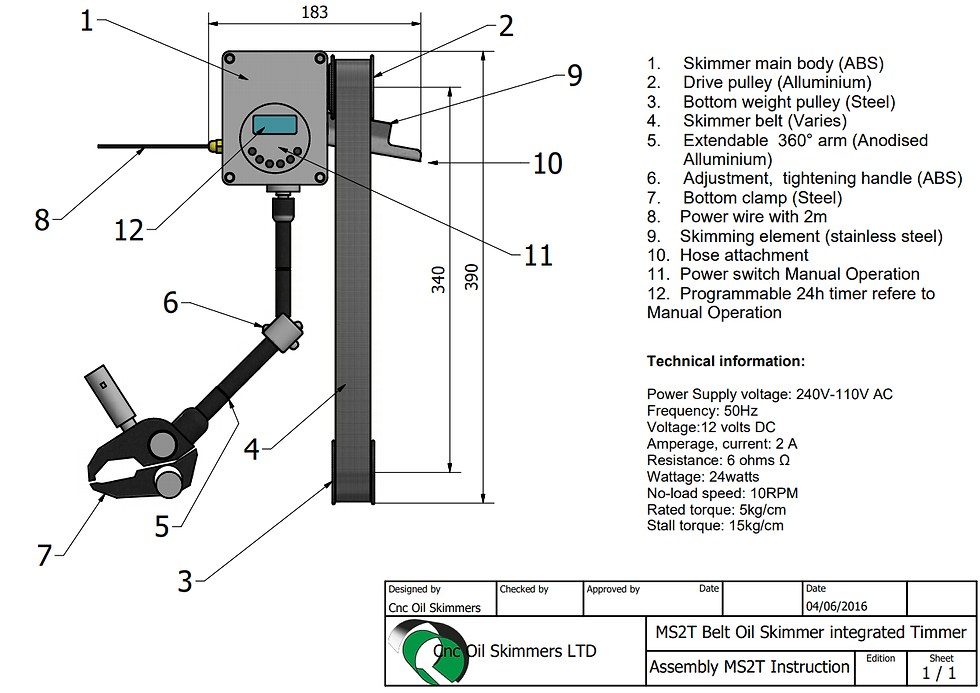

Oil Skimmer with integrated timer MS2T 45mm belt width
Technical information Cnc Tramp Oil Skimmer:
-12V DC Powerful High Torque Gear Box Motor
-Excellence wear-resistant metal gear
-High torque 5kg/cm stall range 15 kg/cm,
-Low noise,
-Long service life.-belt width 45mm
Specifications:
Rated voltage: 12VDC
Rated torque: 5kg/cm
Stall torque: 15kg/cm
Product dimensions (main body): 140mm x 115mm x 100mm (L x W x H)
Every unit comes with 30mm belt width x 380 mm drop length (800mm circumference)
Product dimensions (fully extended with 360deg foot): 115x 80 x 400mm ( L x W x H )
Weight: 2.2kg
Standard supplied belt length is 800mm (circumference)
Distance between the centres of the pulleys is 360mm
Details
Every MS2T Belt Oil Skimmer is complete working unit together with: -Belt -Integrated 7 Day Programmable Timer -Power supply -Tubing (tube to direct unwanted oils 400mm long) -360deg foot and bottom clamp. For individual belt lengths please get in touch with us. We are able to provide belt lengths up to 6 meters. Why should you buy our Cnc Oil Skimmer? - Single Oil Skimmer unit elevates and separates oil at a rate up to 3 Lph (depends of viscosity) - Can be used with 110v or 240v AC - Extends Coolant Life - Keep your coolants and lubricants clean - Helping to keep your machined parts clean. - Prolongs tooling life - Limits skin irritations from dirty tramp oils. - Limits smog in machining process. Highest oil removal rate at the lowest costs! 360 deg arm allows to mount literally anywhere. Oil removal in tanks, chemical baths, sumps or any place where oil must be removed. Simple robust design – superb quality! It is made in anodised aluminium arm and main body in safe PVC, and stainless steel all other external components stainless steel. The oil skimmer operates on a safe 12 volt DC, and is mounted on articulated 360 deg arm. This makes the skimmer very easy to install in any conditions at any angle. For more information and specifications please contact us mail@cncskimmers.com +44 07716051575
Delivery on this product is 5 working day's.
Every unit is under one year manufacturing warranty.
